表结构、数据、索引

文件目录 #

 root@db211:/var/lib/mysql/mysql# ls | tail -16
tables_priv.frm
tables_priv.MYD
tables_priv.MYI
time_zone.frm
time_zone.ibd
time_zone_leap_second.frm
time_zone_leap_second.ibd
time_zone_name.frm
time_zone_name.ibd
time_zone_transition.frm
time_zone_transition.ibd
time_zone_transition_type.frm   #INNODB存储引擎-表结构
time_zone_transition_type.ibd   #INNODB存储引擎-表数据+表索引（包括所有索引）
user.frm   #MyISAM存储引擎-表结构
user.MYD   #MyISAM存储引擎-表数据
user.MYI   #MyISAM存储引擎-表索引

INNODE存储引擎的表主键聚簇索引和数据在同一个文件（所以即使没有设置主键，innodb也会为每一行自动生成一个默认的隐藏主键列，用来形成B+树）

索引 #

索引创建 #

建表时创建 #

create table index1( id int, name varchar(20), index idx_id_name (id,name));

后续添加 #

create index idx_name on bank_bill (name);

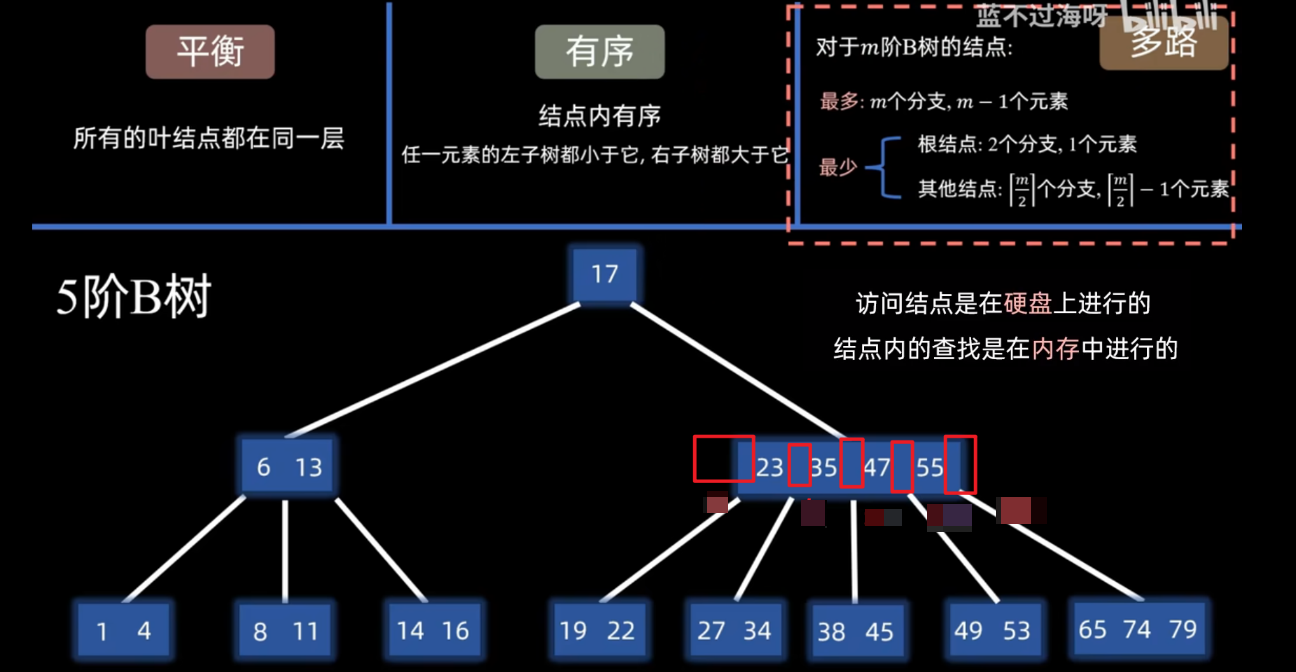

B树 #

m阶B树 ,m个分支（或者说m个区间）
x个元素就会有x+1个区间

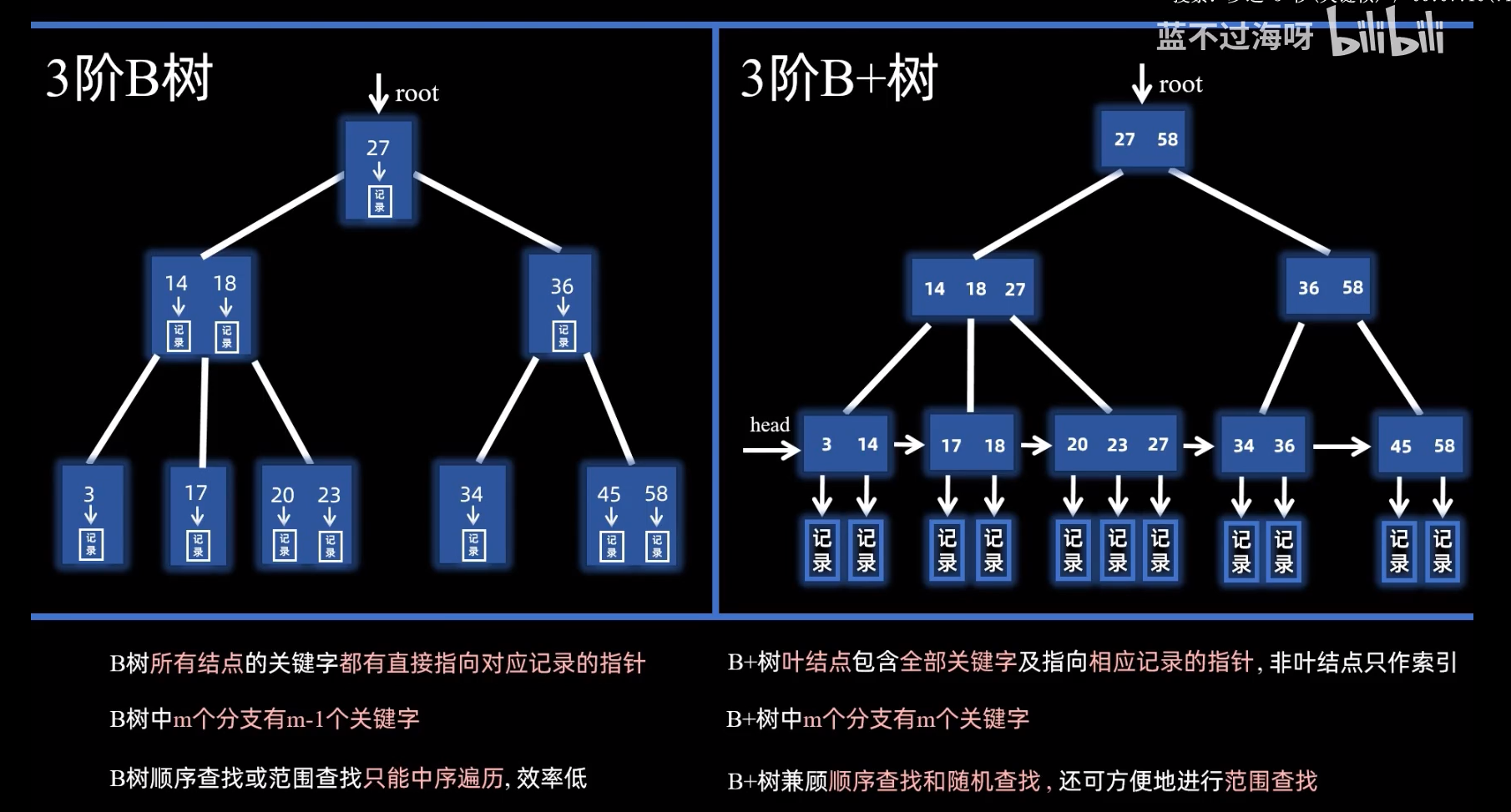

B+树和B树区别 #

从B树考虑 #

log2 2000万≈24.3 log500 2000万≈3 (m阶平衡树) 如果是500阶B树，那么2000万个节点最多只需要3层

从B+树考虑 #

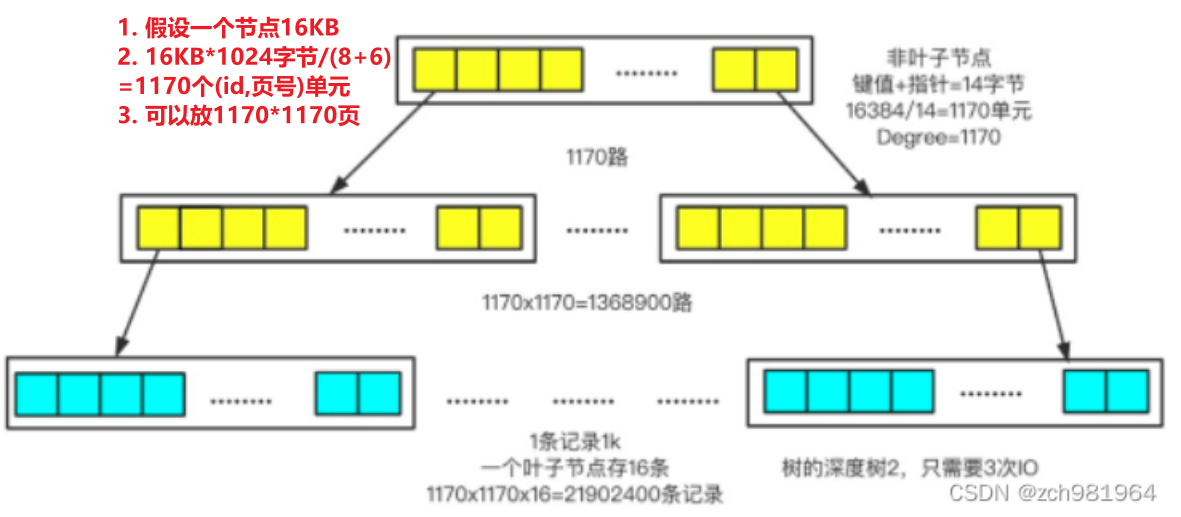

MySQL中，一个节点1页，也就是16KB（可以改），而一个节点可以放（主键bigint(8字节)+页号地址 6字节)单元1170个，假设是1000，那两层可以放100 0000万个节点。由于1个节点16KB，如果一条数据用1KB的话，那么最底层每个叶子节点就是放16条数据。那就是3层可以放1600万条数据。这是估算，细算的话应该是2000万左右

其他 #

操作系统内存管理按页面4K为单位。MySQL默认使用InnoDB存储引擎，其数据块大小（block size）一般默认为16KB

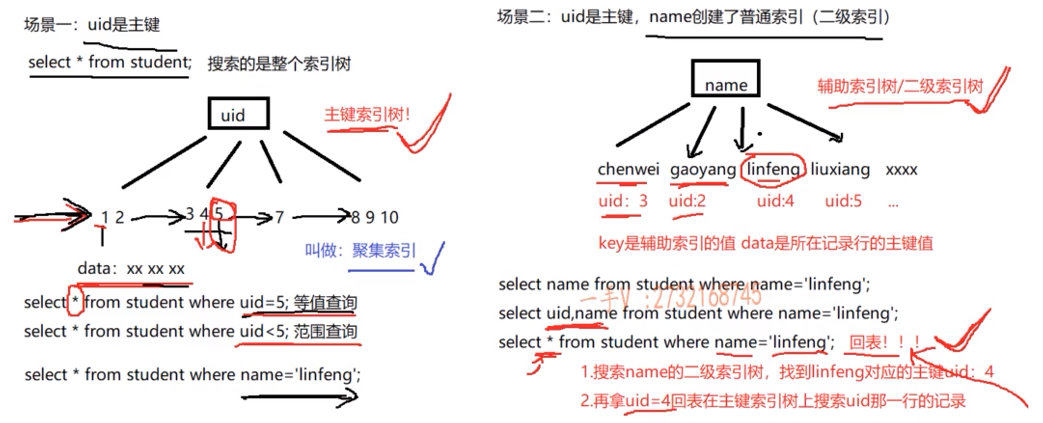

using index #

mysql> explain select name from student where name = 'liuxiang' \G
*************************** 1. row ***************************
           id: 1
  select_type: SIMPLE
        table: student
   partitions: NULL
         type: ref
possible_keys: idx_name
          key: idx_name
      key_len: 152
          ref: const
         rows: 1
     filtered: 100.00
        Extra: Using index (直接在二级索引搜索就结束了)

下面这个还需要回表

mysql> explain select * from student where name = 'liuxiang' \G
*************************** 1. row ***************************
           id: 1
  select_type: SIMPLE
        table: student
   partitions: NULL
         type: ref
possible_keys: idx_name
          key: idx_name
      key_len: 152
          ref: const
         rows: 1
     filtered: 100.00
        Extra: NULL

ordery by #

mysql> explain select * from student where age=20 order by name\G
*************************** 1. row ***************************
           id: 1
  select_type: SIMPLE
        table: student
   partitions: NULL
         type: ref
possible_keys: idx_age
          key: idx_age
      key_len: 1
          ref: const
         rows: 2
     filtered: 100.00
        Extra: Using index condition; Using filesort
#去除filesort
mysql> create index idx_age_name on student (age,name);
 mysql> explain select * from student where age=20 order by name\G
*************************** 1. row ***************************
           id: 1
  select_type: SIMPLE
        table: student
   partitions: NULL
         type: ref
possible_keys: idx_age,idx_age_name
          key: idx_age_name
      key_len: 1
          ref: const
         rows: 2
     filtered: 100.00
        Extra: Using index condition

select * #

mysql> explain select * from student where age=20 \G
*************************** 1. row ***************************
           id: 1
  select_type: SIMPLE
        table: student
   partitions: NULL
         type: ref
possible_keys: idx_age,idx_age_name
          key: idx_age
      key_len: 1
          ref: const
         rows: 2
     filtered: 100.00
        Extra: NULL （这里回表拿数据了）

mysql> explain select uid,age,name from student where age=20 \G
*************************** 1. row ***************************
           id: 1
  select_type: SIMPLE
        table: student
   partitions: NULL
         type: ref
possible_keys: idx_age,idx_age_name
          key: idx_age_name
      key_len: 1
          ref: const
         rows: 2
     filtered: 100.00
        Extra: Using index （不需要回表拿数据，使用了覆盖索引，能够直接摒弃回表操作）
1 row in set, 1 warning (0.00 sec)

hash索引(memory) #

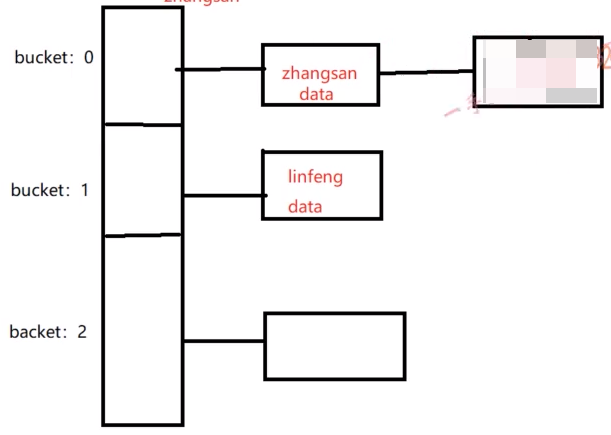

如图，链式哈希表。只能做等值查找。范围、前缀、order by都不合适

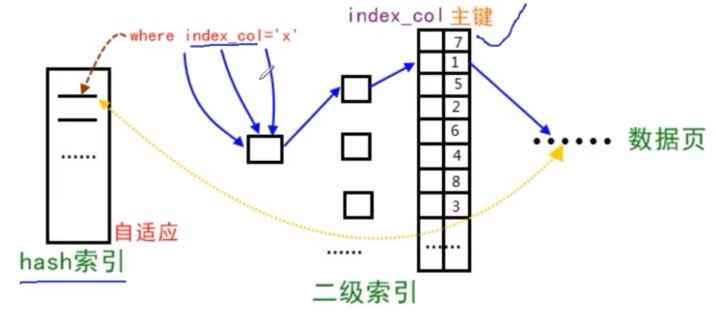

自适应哈希索引 #

InnoDB存储引擎检测到同样的二级索引不断被使用，那么它会根据这个二级索引，在内存上根据二级索引树（B+）树上的二级索引值，在内存上构建一个哈希索引，来加速搜索。 hash的data是整条记录的所有列值

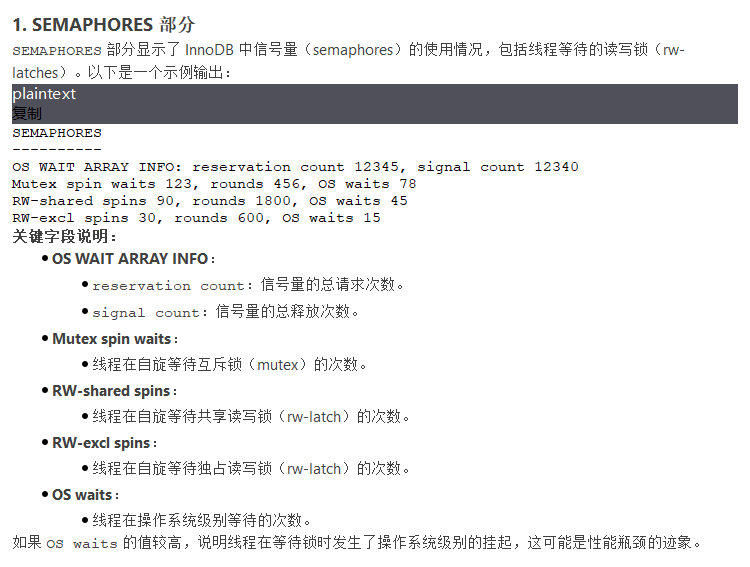

如果通过SHOW ENGINE INNODB STATUS看到多个线程堵塞，那么应该关闭自适应哈希索引

OS WAIT ARRAY INFO: reservation count 45233
OS WAIT ARRAY INFO: signal count 34406
RW-shared spins 0, rounds 12022, OS waits 5057
RW-excl spins 0, rounds 496967, OS waits 18860
RW-sx spins 14517, rounds 435189, OS waits 12759
Spin rounds per wait: 12022.00 RW-shared, 496967.00 RW-excl, 29.98 RW-sx



Hash table size 34679, node heap has 0 buffer(s)
Hash table size 34679, node heap has 0 buffer(s)
Hash table size 34679, node heap has 0 buffer(s)
Hash table size 34679, node heap has 0 buffer(s)
Hash table size 34679, node heap has 1 buffer(s)
Hash table size 34679, node heap has 1 buffer(s)
Hash table size 34679, node heap has 1 buffer(s)
Hash table size 34679, node heap has 2 buffer(s)
0.00 hash searches/s, 0.00 non-hash searches/s
#使用频率

补充 #

deepseek说明

索引相关问题 #

过滤量少导致失效 #

mysql> explain select * from student where sex = 'M' \G;
*************************** 1. row ***************************
           id: 1
  select_type: SIMPLE
        table: student
   partitions: NULL
         type: ALL
possible_keys: idx_sex
          key: NULL
      key_len: NULL
          ref: NULL
         rows: 6
     filtered: 50.00
        Extra: Using where

强制使用索引 #

前提：已经为student创建了idx_age和idx_name

mysql> explain select * from student where name = 'chenwei' and age = 20 \G
*************************** 1. row ***************************
           id: 1
  select_type: SIMPLE
        table: student
   partitions: NULL
         type: ref
possible_keys: idx_age,idx_name
          key: idx_name
      key_len: 152
          ref: const
         rows: 1
     filtered: 33.33
        Extra: Using where
1 row in set, 1 warning (0.00 sec)

mysql> explain select * from student force index(idx_age) where name = 'chenwei' and age = 20  \G
*************************** 1. row ***************************
           id: 1
  select_type: SIMPLE
        table: student
   partitions: NULL
         type: ref
possible_keys: idx_age
          key: idx_age (强制使用idx_age索引)
      key_len: 1
          ref: const
         rows: 2
     filtered: 16.67
        Extra: Using where
1 row in set, 1 warning (0.00 sec)

not in相关问题 #

mysql> explain select * from student where  age in( 20) \G
*************************** 1. row ***************************
           id: 1
  select_type: SIMPLE
        table: student
   partitions: NULL
         type: ref
possible_keys: idx_age
          key: idx_age
      key_len: 1
          ref: const
         rows: 2
     filtered: 100.00
        Extra: NULL
1 row in set, 1 warning (0.00 sec)

mysql> explain select * from student where  age not in( 20) \G
*************************** 1. row ***************************
           id: 1
  select_type: SIMPLE
        table: student
   partitions: NULL
         type: ALL (不走索引)
possible_keys: idx_age
          key: NULL
      key_len: NULL
          ref: NULL
         rows: 6
     filtered: 66.67
        Extra: Using where
1 row in set, 1 warning (0.00 sec)
#用索引
mysql> explain select age from student where  age not in( 20) \G
*************************** 1. row ***************************
           id: 1
  select_type: SIMPLE
        table: student
   partitions: NULL
         type: range
possible_keys: idx_age
          key: idx_age
      key_len: 1
          ref: NULL
         rows: 4
     filtered: 100.00
        Extra: Using where; Using index
1 row in set, 1 warning (0.00 sec)
#数据量少，也会用索引
mysql> explain select * from student where  age not in( 20) limit 1 \G
*************************** 1. row ***************************
           id: 1
  select_type: SIMPLE
        table: student
   partitions: NULL
         type: range (因为被转换成范围了  age <1 and age > 20)
possible_keys: idx_age
          key: idx_age
      key_len: 1
          ref: NULL
         rows: 4
     filtered: 100.00
        Extra: Using index condition
1 row in set, 1 warning (0.00 sec)
#上面的语句相当于
mysql> explain  select age from student where  age < 20 or age > 20 \G
*************************** 1. row ***************************
           id: 1
  select_type: SIMPLE
        table: student
   partitions: NULL
         type: range
possible_keys: idx_age
          key: idx_age
      key_len: 1
          ref: NULL
         rows: 4
     filtered: 100.00
        Extra: Using where; Using index

or相关问题 #

#由于成本太高，不会被转成union all语句
mysql> explain select * from student where age <18 or name = 'liuxian' \G
*************************** 1. row ***************************
           id: 1
  select_type: SIMPLE
        table: student
   partitions: NULL
         type: ALL
possible_keys: idx_age,idx_name
          key: NULL
      key_len: NULL
          ref: NULL
         rows: 6
     filtered: 44.44
        Extra: Using where

mysql> explain select * from student where age <18 or uid=2 \G;
*************************** 1. row ***************************
           id: 1
  select_type: SIMPLE
        table: student
   partitions: NULL
         type: index_merge
possible_keys: PRIMARY,idx_age
          key: idx_age,PRIMARY
      key_len: 1,4
          ref: NULL
         rows: 2
     filtered: 100.00
        Extra: Using sort_union(idx_age,PRIMARY); Using where
1 row in set, 1 warning (0.00 sec)
#这个语句会被转换成union all : select * from student where age <18 union all select * from student where uid=2

面试切入点 #

从什么地方获取运行时间长、耗时的sql，再用explain分析它

慢查询日志 #

mysql> show variables like '%slow_query%' \G
*************************** 1. row ***************************
Variable_name: slow_query_log
        Value: OFF
*************************** 2. row ***************************
Variable_name: slow_query_log_file
        Value: /var/lib/mysql/db211-slow.log
#时间

修改：

set long_query_time = 0.01;//只对某session有效，但重启mysql后失效(可以设置global让他对新的session有用)
set global slow_query_log=ON; //全局起作用（只对之后的新session起全局作用）, 但重启mysql后失效。
#查询是否设置成功
mysql> show variables like 'slow_query%' \G
*************************** 1. row ***************************
Variable_name: slow_query_log
        Value: ON
*************************** 2. row ***************************
Variable_name: slow_query_log_file
        Value: /var/lib/mysql/db211-slow.log

慢查询日志：

#/var/lib/mysql/db211-slow.log
/usr/sbin/mysqld, Version: 5.7.33 (MySQL Community Server (GPL)). started with:
Tcp port: 3306  Unix socket: /var/run/mysqld/mysqld.sock
Time                 Id Command    Argument
# Time: 2025-03-21T04:49:56.308214Z
# User@Host: root[root] @ localhost []  Id:    22
# Query_time: 0.027501  Lock_time: 0.000000 Rows_sent: 0  Rows_examined: 0
use test;
SET timestamp=1742532596;
set global slow_query_log=ON;
# Time: 2025-03-21T04:52:55.935025Z
# User@Host: root[root] @ localhost []  Id:    22
# Query_time: 0.920988  Lock_time: 0.000147 Rows_sent: 1  Rows_examined: 1000001
SET timestamp=1742532775;
select * from t_user limit 1000000,1;
# Time: 2025-03-21T04:55:30.781012Z
# User@Host: root[root] @ localhost []  Id:    22
# Query_time: 1.078875  Lock_time: 0.000248 Rows_sent: 1  Rows_examined: 2000000
SET timestamp=1742532930;
select * from t_user where password = 'h4HcxZKBNQ';

上面，时区不对，这里顺便修改

vim /etc/mysql/mysql.conf.d/mysqld.cnf
#[mysqld]下添加这句话
log_timestamps=SYSTEM
#重启mysql
sudo systemctl restart mysql

profiling-更细致的执行时间 #

mysql> show variables like 'profiling';
+---------------+-------+
| Variable_name | Value |
+---------------+-------+
| profiling     | OFF   |
+---------------+-------+
mysql> set profiling=on;
mysql> show variables like 'profiling';
+---------------+-------+
| Variable_name | Value |
+---------------+-------+
| profiling     | ON    |
+---------------+-------+


mysql> select * from t_user where id=1200000;
+---------+-------------------------+------------+
| id      | email                   | password   |
+---------+-------------------------+------------+
| 1200000 | wingszekam5@outlook.com | C40nXFlEFi |
+---------+-------------------------+------------+
1 row in set (0.01 sec)

mysql> select * from t_user where email='1200000';;
Empty set (0.66 sec)

mysql> show profiles;
+----------+------------+--------------------------------------------+
| Query_ID | Duration   | Query                                      |
+----------+------------+--------------------------------------------+
|        1 | 0.00235900 | show variables like 'profiling'            |
|        2 | 0.00688200 | select * from t_user where tid=1200000     |
|        3 | 0.00073150 | select * from t_user where uid=1200000     |
|        4 | 0.01510150 | desc t_user                                |
|        5 | 0.00238000 | select * from t_user where id=1200000      |
|        6 | 0.65880625 | select * from t_user where email='1200000' |
+----------+------------+--------------------------------------------+
6 rows in set, 1 warning (0.00 sec)
