qt学习

建议版本 #

  • Qt 4.8.7 官方推荐的 MinGW 版本为 4.4.x,但是MinGW4.4没法编译,MinGW4.5才行,然后找不到MinGW4.5,这里使用了MinGW4.8。qtCreator配套推荐3.0.1(也可以用3.5.0)

下载(视频所用版本) #

- perl-->  https://strawberryperl.com/download/5.16.3.1/strawberry-perl-5.16.3.1-32bit-portable.zip
- MinGW(4.8.1): https://sourceforge.net/projects/mingw-w64/files/Toolchains%20targetting%20Win32/Personal%20Builds/mingw-builds/4.8.1/threads-posix/sjlj/i686-4.8.1-release-posix-sjlj-rt_v3-rev2.7z/download (兼容windowsXP)
- (推荐)https://sourceforge.net/projects/mingw-w64/files/Toolchains%20targetting%20Win32/Personal%20Builds/mingw-builds/4.8.2/threads-posix/dwarf/ (新版win7以上)
=====qt 4.8.7========
- qt库(带MinGW和qtCreator) :https://download.qt.io/new_archive/qt/4.8/4.8.7/qt-opensource-windows-x86-mingw482-4.8.7.exe
- qt库(源码): https://download.qt.io/new_archive/qt/4.8/4.8.7/qt-everywhere-opensource-src-4.8.7.zip
- qtCreator: https://qt.mirror.constant.com/archive/qtcreator/3.0/3.0.1/qt-creator-opensource-windows-x86-3.0.1.exe
===弃用===
- MinGW(4.4): https://www.123912.com/s/u5pSjv-32uAH?提取码:M27Z
	- 要记得设置环境变量
- qt库: https://download.qt.io/archive/qt/4.7/qt-win-opensource-4.7.0-mingw.exe
- Qt Creator: https://download.qt.io/archive/qtcreator/2.0/qt-creator-win-opensource-2.0.1.exe
====使用5.0.2====
qt+mingw--> https://download.qt.io/archive/qt/5.0/5.0.2/qt-windows-opensource-5.0.2-mingw47_32-x86-offline.exe
源码-->  https://download.qt.io/archive/qt/5.0/5.0.2/single/qt-everywhere-opensource-src-5.0.2.zip
=====在线版5.15======
https://mirrors.tuna.tsinghua.edu.cn/qt/official_releases/online_installers/qt-online-installer-windows-x64-online.exe
- .\qt-online-installer-windows-x64-online.exe  --mirror https://mirrors.ustc.edu.cn/qtproject
- Archive中选择5.15及6.8
- 安装内容:MinGW,Android,QtCharts,QtMultimedia,QtQuich3D,QtShaderTools
=====其他=======
- qt库(带MinGW和qtCreator): https://download.qt.io/new_archive/qt/5.2/5.2.1/qt-opensource-windows-x86-mingw48_opengl-5.2.1.exe

编译静态编译的qmake #

  • 下载源码
  • 路径不能有奇奇怪怪的符号(.-_ 之类)
  • (弃)修改 E:\Qt\qtSrc\qtbase\mkspecs\win32-g++\qmake.conf,修改QMAKE_LFLAGS = -static -enable-stdcall-fixup -Wl,-enable-auto-import -Wl,-enable-runtime-pseudo-reloc(仅添加-static)

目录结构 #

#mkdir "E:\Qt\qtCustom487\buildQtStatic" #/p
mkdir "E:\Qt\qtCustom\buildQtStatic" #/p
#mkdir "E:\Qt\qtCustom487\qtStatic" #/p
mkdir "E:\Qt\qtCustom\qtStatic"
#mkdir "E:\Qt\qtCustom487\qtSrc" #/p
mkdir "E:\Qt\qtCustom\qtSrc"
#E:\Qt\qtCustom下
				- buildQtStatic #(新建的)编译时切换到这个目录
				- qtSrc #源码
				- qtStatic #(新建的)install目录

静态编译 #

我用的是视频0087集的办法,也可以用 https://www.cnblogs.com/atggg/p/16878575.html试试

#修改文件 E:\Qt\qtCustom\qtSrc\qtbase\mkspecs\win32-g++\qmake.conf
#末尾添加
#======lyadd======
QMAKE_LFLAGS += -static -static-libgcc -static-libstdc++
QMAKE_CFLAGS += -static
QMAKE_CXXFLAGS += -static

编译时不加上面这几行修改qmake.conf的原因

#(很重要,在src外,不然编译时一堆错误)
cd "E:\Qt\qtCustom\buildQtStatic"
"E:\Qt\qtCustom\qtSrc\configure.bat" -static -debug-and-release -platform win32-g++ -prefix "E:\Qt\qtCustom\qtStatic"  -opensource -confirm-license -opengl desktop -nomake  examples -nomake tests -nomake demos
#-debug-and-release linux默认
#-release windows默认
#-debug

# 编译(-j4 表示 4 线程加速 )
mingw32-make  -j4
# 安装到指定目录
mingw32-make -j4 install
#=============4.8.7===========
cd "E:\Qt\qtCustom487\buildQtStatic"
#cd "E:\Qt\qtCustom487\buildQtShared"
"E:\Qt\qtCustom487\qtSrc\configure.exe" -static -debug-and-release -platform win32-g++ -prefix "E:\Qt\qtCustom487\qtStatic"  -opensource -confirm-license -opengl desktop -nomake  examples -nomake tests -nomake demos
#"E:\Qt\qtCustom487\qtSrc\configure.exe" -shared -debug-and-release -platform win32-g++ -prefix "E:\Qt\qtCustom487\qtShared"  -opensource -confirm-license -opengl desktop -nomake  examples -nomake tests -nomake demos
#-debug-and-release linux默认
#-release windows默认
#-debug

# 编译(-j4 表示 4 线程加速 )
mingw32-make  -j2
# 安装到指定目录
mingw32-make -j2 install

动态编译 #

configure -platform win32-g++ -shared -release

qtCreator #

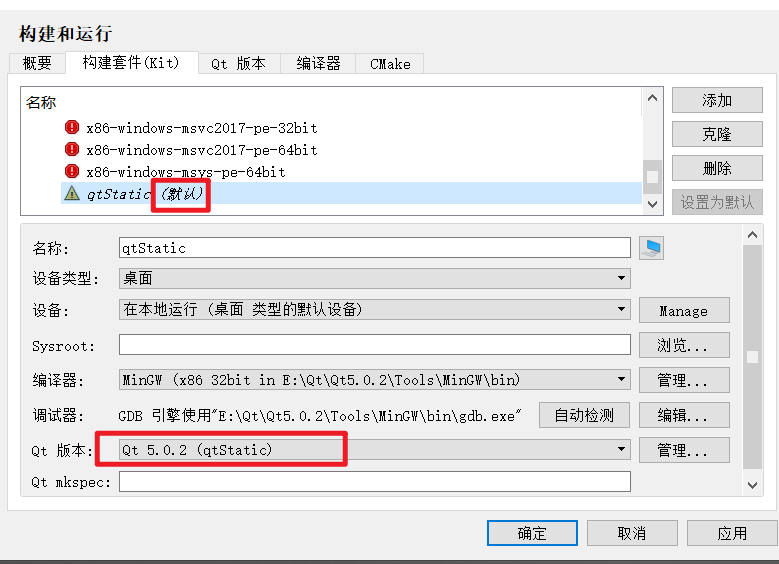

  • Qt Creator → 工具 (Tools) → 选项 (Options) → Kits

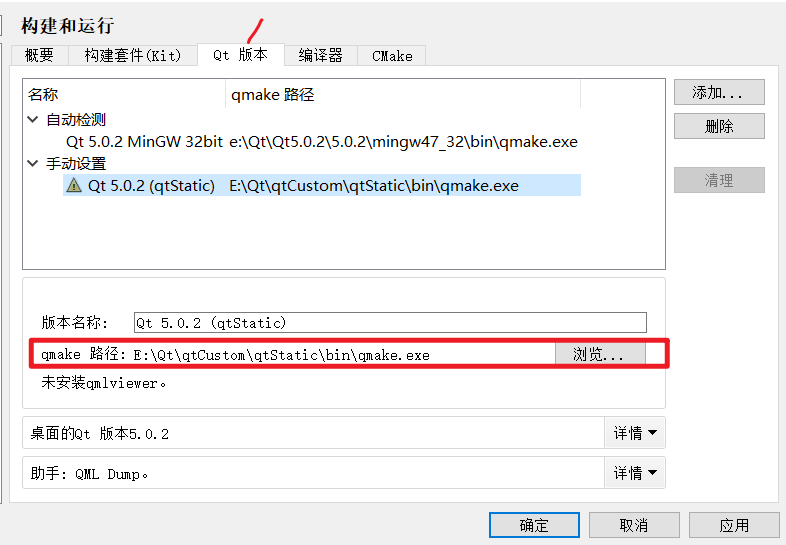

    • qmake.exe
    • Qt 5.0.2 (Static)

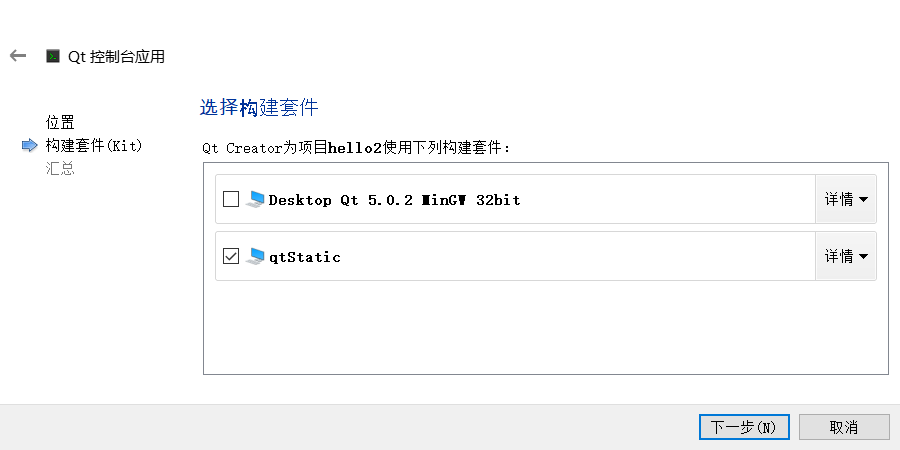

    • 新建项目

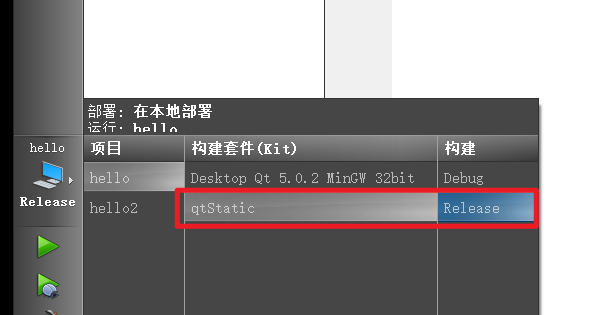

      • 如果两个都选择了,编译的时候也可以选择
